Published on 22.06.20 in Vol 8, No 6 (2020): June

Preprints (earlier versions) of this paper are available at http://preprints.jmir.org/preprint/18134, first published Feb 05, 2020.

This paper is in the following e-collection/theme issue:

    Original Paper

    Machine Learning–Based Signal Quality Evaluation of Single-Period Radial Artery Pulse Waves: Model Development and Validation

    1Shanghai Key Laboratory of Health Identification and Assessment, Laboratory of Traditional Chinese Medicine Four Diagnostic Information, Shanghai University of Traditional Chinese Medicine, Shanghai, China

    2Department of Pharmaceutical Science, College of Pharmacy, University of South Florida, Tampa, FL, United States

    *these authors contributed equally

    Corresponding Author:

    Yiqin Wang, MD

    Shanghai Key Laboratory of Health Identification and Assessment

    Laboratory of Traditional Chinese Medicine Four Diagnostic Information

    Shanghai University of Traditional Chinese Medicine

    1200 Cailun Road

    Shanghai, 201203

    China

    Phone: 86 21 51322271

    Email: wangyiqin2380@vip.sina.com


    ABSTRACT

    Background: The radial artery pulse wave is a widely used physiological signal for disease diagnosis and personal health monitoring because it provides insight into the overall health of the heart and blood vessels. Periodic radial artery pulse signals are subsequently decomposed into single pulse wave periods (segments) for physiological parameter evaluations. However, abnormal periods frequently arise due to external interference, the inherent imperfections of current segmentation methods, and the quality of the pulse wave signals.

    Objective: The objective of this paper was to develop a machine learning model to detect abnormal pulse periods in real clinical data.

    Methods: Various machine learning models, such as k-nearest neighbor, logistic regression, and support vector machines, were applied to classify the normal and abnormal periods in 8561 segments extracted from the radial pulse waves of 390 outpatients. The recursive feature elimination method was used to simplify the classifier.

    Results: It was found that a logistic regression model with only four input features can achieve a satisfactory result. The area under the receiver operating characteristic curve from the test set was 0.9920. In addition, these classifiers can be easily interpreted.

    Conclusions: We expect that this model can be applied in smart sport watches and watchbands to accurately evaluate human health status.

    JMIR Med Inform 2020;8(6):e18134

    doi:10.2196/18134

    KEYWORDS



    Introduction

    Pulse-taking is widely used in disease diagnosis and personal health monitoring. For example, in traditional Chinese medicine (TCM), pulse-taking is an important approach to differentiate TCM syndrome patterns in which the physician uses their fingers to detect patients’ pulsations. The radial artery is the most frequently used position for pulse-taking because the pulse wave of the radial artery contains abundant physiological information and is convenient for pulse-taking due to the accessibility of the vessels [1]. The development of smartwatches in recent years, coupled with pulse-taking analysis applications, enables individuals to monitor their pulse rates and physiological state throughout the day. As the number of smartwatch users expands, researchers are increasingly attempting to detect a variety of subclinical diseases such as atrial fibrillation (AF) by radial artery pulse waves in the early stages of disease progression. However, the majority of existing approaches are based on heart rate variability, which ignores important information contained in the changing pulse wave during a single cardiac cycle. The deep neural network models used for prediction are sometimes difficult to interpret [2]. Recently, researchers in the field of TCM diagnostics and hemodynamics have successfully utilized the information contained in single-period pulse waves not only to differentiate traditional syndrome patterns and diseases such as hypertension, diabetes, and other diseases not directly related to heart rhythm but also to fit modern clinical indices through objective recording [3-7]. Incorporating single-period pulse wave signals in smartwatches may improve the accuracy of existing applications in an interpretable way and expand the application scope of radial artery pulse waves.

    In general, the radial artery pulse wave is a periodic signal. Therefore, it is necessary to segment the whole pulse wave series into periods before performing data mining of single-period pulse waves. However, the radial artery pulse wave signal is so weak that it is vulnerable to interference (such as breathing or vibration) during the acquisition process. These interferences can lead to waveform distortion, which increases the difficulty of segmenting the periods. In addition, no currently existing algorithm can extract single-period pulse wave signals from whole pulse wave series without error. Therefore, some pulse wave segments (abnormal segments) obtained by period segmentation are often remarkably different from the normal waveforms (Figure 1). These abnormal waveform pulses may affect future prediction results. As a result, automatically identifying these outliers from single-period pulse wave signals will significantly improve the accuracy of analysis.

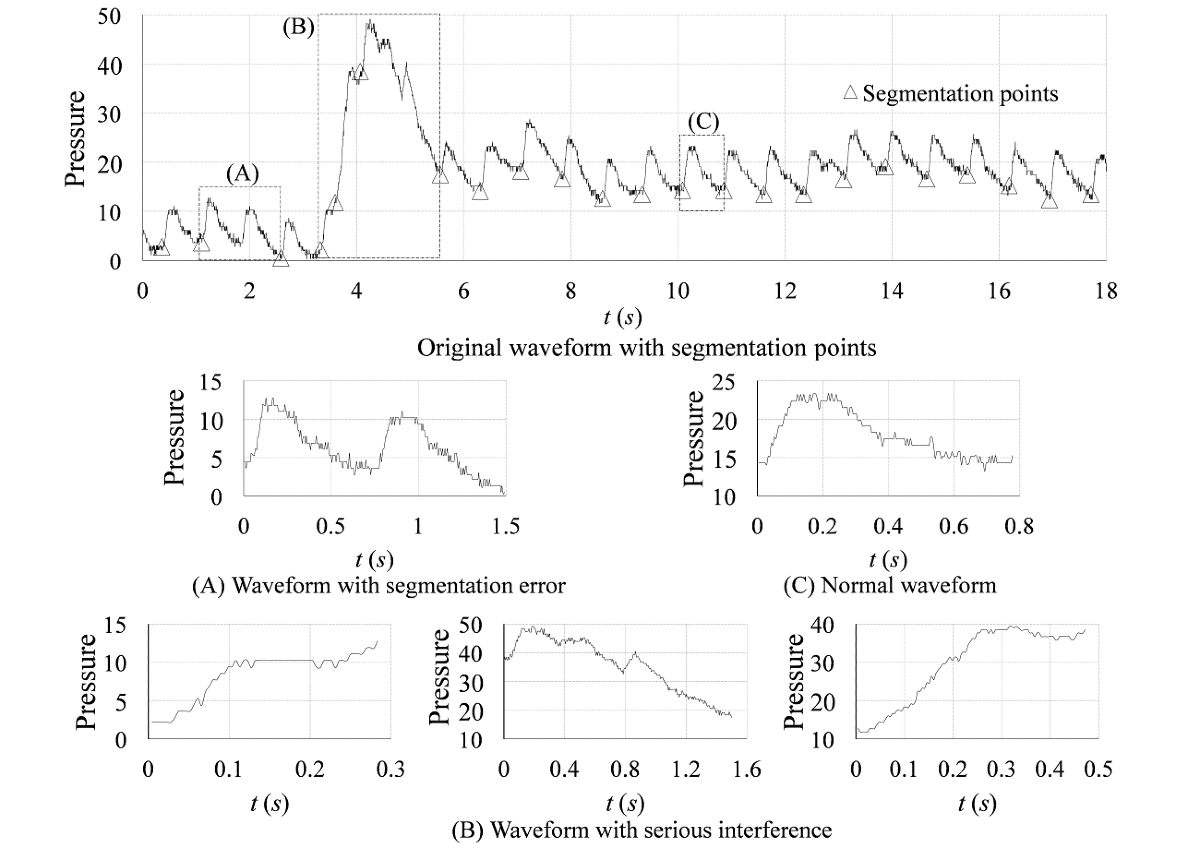

    Figure 1. Normal and abnormal pulse wave segments. A radial artery pulse wave series was segmented into periods by the segmentation method detailed in the Preprocessing section with α=.7. The segments of the original waveform between two adjacent segmentation points are regarded as single-period pulse waveforms. A and B show the abnormal segments caused by segmentation error and serious interference, respectively; C shows a normal segment; t (s): time in seconds.
    View this figure

    The early approach was to omit the waveform outliers that were too long or too short [8]. However, this method cannot be used to identify outliers with normal lengths. Thakker and Vyas [9] used dynamic time warping as a similarity measure in a pulse series in which the most dissimilar segments in the pulse series were classified as outliers. However, for patients with atrial fibrillation or other specific diseases, abnormal waveforms often appear in one series. In addition, significant outside interference may drastically reduce the number of normal segments. Due to these factors, it is difficult to discriminate between normal signals and outliers using this algorithm. This similarity is not the only important criterion for classifying pulse segments. Wang and Lu [10] utilized a k-nearest neighbor (KNN) classifier based on manual label data to measure the quality of the segmented single periods. However, the details and accuracy of the classifier were not shown. In a recent study, a method based on the Hilbert-Huang transform and an autoregressive moving average model was proposed to remove noise-induced mutations [11]. The accuracy of this method could reach 91.8% in a sample size of 207. However, because this method works on the entire pulse series, segmentation mistakes could not be identified. A consensus on the best method to evaluate the signal quality of a single-period pulse wave has not been reached. The purpose of this study was to utilize machine learning models to develop a signal quality evaluation model that can separate normal segments and abnormal segments. We expect that the model can be applied to help smart sport watches and watchbands evaluate human health status more accurately.


    Methods

    Data

    In this study, the original radial artery pulse wave signals were taken from 390 outpatients at Shanghai Shuguang Hospital. All samples were split into an 80/20 ratio for training and testing sets. In other words, the data set was randomly divided into a training set with a capacity of 313 and a testing set with a capacity of 77.

    Preprocessing

    The steps of preprocessing, including segmentation and standardization, are illustrated in Figure 2.

    Figure 2. The steps of data preprocessing. During segmentation, to reduce the influence of baseline wander, the derivative of the original signal was used to locate segmentation points by the threshold method. The corresponding segments of the original signal between two adjacent period segmentation points were single-period pulse wave segments. During standardization, each segment was rescaled and resampled to standardize its amplitude and length.
    View this figure

    A simple segmentation method is the threshold method, which regards the minimum point below a specific threshold or the maximum point above a specific threshold as the period segmentation point. However, baseline wander is one of the most common forms of interference in pulse wave signals. Thus, it is difficult to apply the threshold method to the original signal. In contrast, as shown in Figure 3, the derivative of the original signal is almost entirely unaffected by baseline wander and also shows clearer segmentation points. Therefore, the threshold method can be used in the derivative for segmentation.

    Figure 3. Sample pulse wave with baseline wander and the derivative of the pulse wave with an applied threshold. t (s): time in seconds.
    View this figure

    To collect more normal and abnormal segments with different shapes, 5 different thresholds (between the maximum value of the derivative and 0) were selected for segmentation. If M is the maximum value of the derivative and α is a coefficient between 0 and 1, the threshold is given by

    threshold = Mα (1)

    In this study, for each patient’s data, α takes 5 different values: 0.1, 0.3, 0.5, 0.7, and 0.9.

    During segmentation, all threshold points of the derivative were first found. The first zero point of the derivative before each threshold point was defined as the period segmentation point, and the corresponding segments of the original signal between two adjacent period segmentation points were single-period waveforms. To avoid the presence of repetitive waveforms with significant similarities in the data set, only 5 segments were randomly selected for each threshold (if sufficient). No more than 25 segments were obtained from each patient by repeating the above process with different thresholds.

    After segmentation, each segment was manually labeled as “normal” or “abnormal” by two expert annotators. A normal segment was required to have similar lengths, amplitudes, and shapes to most other segments in the same pulse series; be free of serious interference that could not be explained by the laws of physiology and pathology; have an approximately horizontal baseline, in which the difference between the values of the start point and the end point was not more than half the amplitude; and include only one complete cardiac cycle. The segments in which the two experts could not reach a consensus on their labels were not included in subsequent analyses. A total of 6832 segments were collected in the training set, of which 3974 (58.2%) were normal segments and 2858 (41.8%) were abnormal segments. In addition, a total of 1729 segments were collected in the testing set; 965 normal segments (55.8%) and 764 abnormal segments (44.2%) were identified.

    The amplitudes and lengths of the segments differed from one another. To reduce the impact on the classification process, the original signals were standardized before classification. The segments were rescaled so that all values fell in the interval (0,1). If X = {x1, x2, …, xn} was a segment, the rescaled segment Y was given by

    Cubic spline interpolation was used to resample the segments to unify their lengths to a standard length. In this study, the trial values for the standard length were integers between 3 and 100. In general, the frequency range that contains useful information is below 25 hertz, and the cardiac cycle is no longer than 2 seconds. 100 sampling points are sufficient to contain all the useful information in one period. Hence, integers greater than 100 were not tested in this study.

    Classification Methods

    All 100 sampling points of the pulse wave segments were used as input features of the classifiers in this study. Three machine learning algorithms were applied to develop the classifiers:

    1. KNN: The n_neighbors parameter was determined through cross-validation; the trial values for n_neighbors were integers in the range of 1-50.
    2. Logistic regression: To reduce the influence of multicollinearity, L2 regularized logistic regression was chosen.
    3. Support vector machine: support vector machine models with the radial basis function kernel (SVM-RBF), linear kernel (SVM-Linear), and 3-degree polynomial kernel (SVM-Poly) were applied. The cost and gamma parameters were determined through cross-validation, with trial cost values of 0.01, 0.1, 1, 10, and 100 and trial gamma values of 0.001, 0.01, 0.1, 1, and 10.

    To estimate the accuracy of the models (out-of-sample accuracy), 10-fold cross-validation was applied. The most appropriate machine learning model was chosen by comparing the sensitivity, specificity and accuracy of the different algorithms. Based on the selected model, a reasonable value of standard input length was then identified by comparing the classification accuracies with different standard lengths.

    In addition, the pulse waveforms that point at different positions in a cardiac cycle have different physiological significance and may influence the signal quality evaluation to varying degrees. To evaluate the contribution of each feature to the classification, recursive feature elimination was used to rank the features [12,13]. By excluding features one by one, it is possible to identify the smallest subset of features that can achieve satisfactory classification performance.

    All the above steps were implemented in the training set. The final prediction model was validated on the testing set.


    Results

    Accuracy, Sensitivity, and Specificity of the Three Classification Models

    The maximum accuracy, sensitivity, and specificity of each classification algorithm are presented in Table 1. All values are greater than 0.94, which indicates that all three algorithms performed similarly and effectively in waveform classification. To increase the simplicity and interpretability of the model, logistic regression was selected for further investigation.

    Table 1. Comparison of the three classification algorithms, ±σ.
    View this table

    Standard Length

    Figure 4 shows the performance of the logistic regression model with different standard lengths. When the standard length was >15, the model was stable and performed well; when the standard length was <15, the performance of the classifier deteriorated gradually as the standard length decreased. Therefore, 15 was selected as a reasonable value of the standard length for simplification of the model.

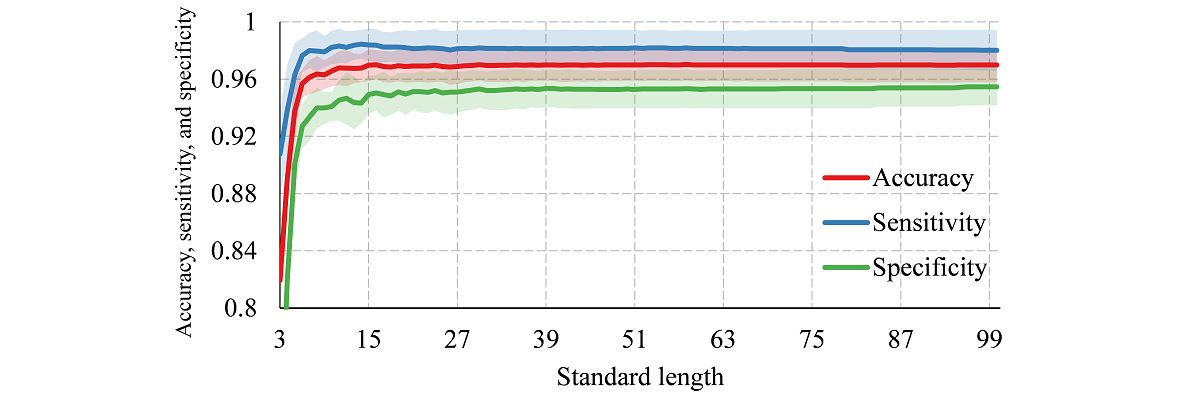

    Figure 4. Accuracy, sensitivity, specificity, and standard deviation intervals of the classifier with different standard lengths.
    View this figure

    Each segment was resampled using the standard length of 15, and the importance ranking of the 15 feature points (Table 2) was then calculated based on the recursive feature elimination algorithm. When we sequentially eliminated the features one by one, as illustrated in Figure 5, the classifier performed equally well when the number of features was equal to or greater than 4. As shown in Table 2, the four most important feature points are the third, 14th, fourth, and first feature points. That is to say, a satisfactory logistic regression classification model can be established by using only four features (the third, 14th, fourth, and first points of the 15 feature points).

    Table 2. Importance ranking of the feature points.
    View this table
    Figure 5. Accuracy, sensitivity, and specificity of the classifier with sequentially eliminated input features and their standard deviation intervals.
    View this figure

    Final Prediction Model

    If xn is the value of the nth feature point, and P is the probability that the segment is normal, the logistic regression classifier identified based on the training set can be given by

    P = sigmoid(–9.6919x1 + 8.2570x3 + 8.9216x4 – 7.9818x14 – 10.8732) (3)

    where

    The prediction model indicates that when x1 and x14 are close to 0 and x3 and x4 are sufficiently large, the corresponding pulse wave segment can be classified as normal.

    We applied this classifier to the testing set, and the receiver operating characteristic (ROC) curve is shown in Figure 6. The area under the curve (AUC) was 0.9920. Using the default threshold of 0.5, the accuracy, sensitivity, and specificity of the classifier were 0.9607, 0.9741, and 0.9437, respectively. This is consistent with the performance on the training set and achieves the expected result.

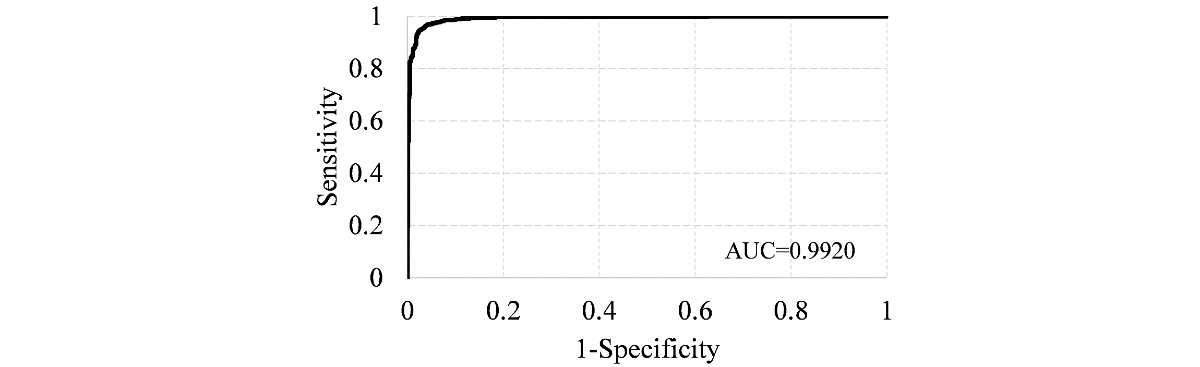

    Figure 6. ROC curve of the final logistic regression classifier on the testing set. AUC: area under the curve.
    View this figure

    Discussion

    In this paper, we compared the performance of three classification algorithms with different input features in the signal quality evaluation of single-period pulse waves. It was discovered that a logistic regression classifier with only four input features could achieve a satisfactory result. The equation of the final prediction model reveals that a pulse wave segment will be classified as normal only when x1 and x14 are close to 0 and x3 and x4 are sufficiently large. This classifier is simple; however, it is consistent with the physiological process of the pulse wave.

    A pulse wave is excited by cardiac ejection. As shown in Figure 7 [14,15], the fluctuation of the radial artery pulse wave corresponds to the events constituting the cardiac cycle. Therefore, a radial pulse wave is very similar to an aortic pulse wave. The pressure begins to rise rapidly as the aortic valve opens and ventricular ejection occurs. Shortly after ejection begins, the pressure reaches a peak and then gradually decreases. On the other side, the aortic pulse wave is greatly influenced by the reflection wave from the lower limbs, whereas the radial pulse wave is mainly influenced by the reflection wave from the upper limbs [16]. The peak of a radial pulse wave occurs much earlier than that of an aortic pulse wave due to differences in timing of the wave reflections in the upper limbs and the relatively distant lower body. When the reflection wave from the lower limbs and aortic valve closure propagates to the radial artery, the radial pulse wave correspondingly increases for a short time. These increases may not occur due to some physiological or pathological factors [17]. However, the rapid rise and gradual decline are essential features of a normal radial artery pulse wave.

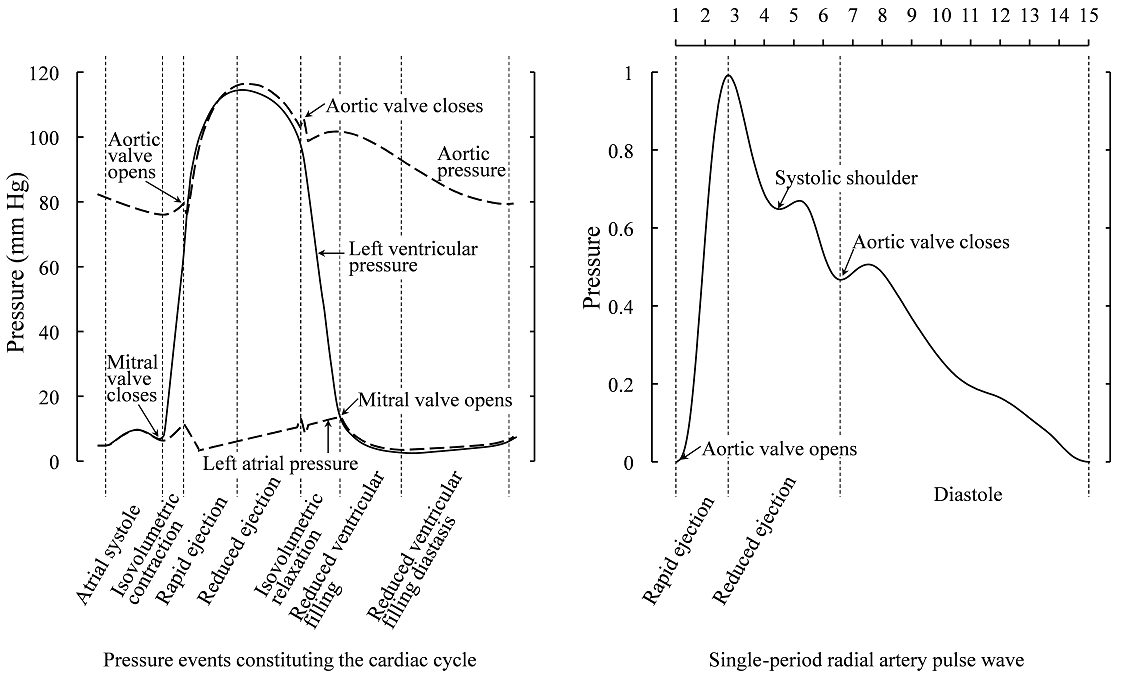

    Figure 7. Comparison of cardiac pressure and radial artery pressure in the cardiac cycle. The fluctuation of the radial artery pulse wave corresponds to the events constituting the cardiac cycle. For a normal waveform, both the starting and ending points should be close to 0, and the peak should appear near the third feature point. mm Hg: millimeters of mercury.
    View this figure

    For a normal waveform, it is apparent that both the start and end points should be close to 0. A high start or end point indicates that the waveform exhibits significant interference. As a result of the relatively long duration of the diastole, the pulse wave remains low and steady at the end of the diastole. Both x14 and x15 are small in normal waveforms. However, as x15 is also the starting point of the next cardiac cycle, it is more likely to increase due to cardiac activity before systole and inaccurate cycle division. x14 is thus more representative of the end point than x15. Correspondingly, at the beginning of the cardiac cycle, due to the rapid rise of the pulse wave in the systole, x2 is not more representative than x1. Therefore, x1 and x14 were incorporated into the model to indicate the conditions of the starting and ending points. In addition, x1 and x14 of an incomplete cycle will not be sufficiently small for the signal to be considered normal because the segmentation points of an incomplete cycle only contain signals of part of the cardiac cycle as opposed to both ends. Therefore, both x1 and x14 can aid identification of the qualities of segmentation.

    The peak of the radial artery pulse wave usually appears near x3. Therefore, under normal conditions, x3 should be close to 1. Due to the relatively slow rate of pressure drop during systole, x4 does not have sufficient time to become very small. If either x3 or x4 is not sufficiently large, it is sufficient to prove that the waveform is abnormal. This can identify external interference; for example, the maximum value will not appear near x3 due to the elevation of the latter part of the waveform, which can also lead to an anomaly in x14. Furthermore, this change can aid the identification of segmentation errors. If we regard multiple cycles as one cycle, the first peak appears too early; as a result, x3 and x4 are not sufficiently large in most cases. If 5 or more cycles happen to be segmented together, one of x3 or x4 may be close to 1. However, under these circumstances, the waveforms rise and fall much more rapidly; thus, it is difficult for x3 and x4 to maintain large values simultaneously. Therefore, the incorporation of x3 and x4 into the model can help classify the waveform by detecting whether the peak of the waveform is located at the correct position.

    In summary, the four input features of the logistic regression model are not only simple and effective but also interpretable. However, this model also has limitations. Most of our samples are free of heart disease, and the corresponding pathological characteristics will not be shown in the data. Consequently, this classifier only aimed to investigate common normal radial artery pulse waves. When searching for differences in the pulse waveforms of individuals without heart disease, we can effectively identify and eliminate abnormal segments with this classifier. However, for patients with some specific diseases, their pulse waves may change due to various pathological factors, which will ultimately lead to errors in classification. An example of this is sinus arrest, a condition in which the sinus node does not produce an impulse in one or more cardiac cycles; this causes the heartbeat to pause for a while, which will generate a long diastole segment in the pulse wave. This is a very important pathological signal; however, our model will classify it as a segmentation error due to the premature peak value. On the other hand, we may be able to use this property to improve the accuracy of some applications, such as distinguishing between premature contraction and atrial fibrillation. Premature contraction is the main cause of false positive error in AF detection algorithms [18]. There is still a certain proportion of normal segments in the pulse waves of patients with premature contraction, whereas AF will decrease the frequency of normal segments due to its irregular stroke volume and cardiac rhythm. This classifier may help distinguish the two cases by determining the ratio of normal segments to abnormal segments in the pulse wave series. In general, this classifier works well in normal cases, and its application scope can potentially expand according to its physiological significance. However, for some specific diseases, this classifier may lead to misclassification and even loss of key information. In the future, we hope to study the pulse wave characteristics of different diseases and distinguish them from random interference and the pulse wave characteristics of healthy people to subsequently improve the classifier and expand its application scope based on the new discoveries.

    Acknowledgments

    This study was supported by the National Natural Science Foundation of China (No. 81673880) and Shanghai Health Identification and Evaluation Laboratory Construction Funding (No. 13DZ2261000).

    Authors' Contributions

    XD, FC, and YW designed this study. XD and FC performed the data analysis. XD wrote the manuscript text, which was revised by FC and RM. CC helped with the sample collection. All authors read and approved the manuscript.

    Conflicts of Interest

    None declared.

    References

    1. Wang Y. Diagnostics of Traditional Chinese Medicine. Beijing: Higher Education Press; Dec 2006.
    2. Sajeev JK, Koshy AN, Teh AW. Wearable devices for cardiac arrhythmia detection: a new contender? Intern Med J 2019 May;49(5):570-573. [CrossRef] [Medline]
    3. Huang C, Lin H, Liao W, Ceurvels W, Su S. Diagnosis of traditional Chinese medicine constitution by integrating indices of tongue, acoustic sound, and pulse. Eur J Integr Med 2019 Apr;27:114-120. [CrossRef]
    4. Tsai Y, Chang Y, Huang Y, Jui-Shan Lin S, Lee S, Cheng Y, et al. The use of time-domain analysis on the choice of measurement location for pulse diagnosis research: A pilot study. J Chin Med Assoc 2019 Jan;82(1):78-85. [CrossRef] [Medline]
    5. Hao Y, Cheng F, Pham M, Rein H, Patel D, Fang Y, et al. A Noninvasive, Economical, and Instant-Result Method to Diagnose and Monitor Type 2 Diabetes Using Pulse Wave: Case-Control Study. JMIR Mhealth Uhealth 2019 Apr 23;7(4):e11959 [FREE Full text] [CrossRef] [Medline]
    6. Liu Z, Liu J, Wen B, He Q, Li Y, Miao F. Cuffless Blood Pressure Estimation Using Pressure Pulse Wave Signals. Sensors (Basel) 2018 Dec 02;18(12):4227 [FREE Full text] [CrossRef] [Medline]
    7. Poleszczuk J, Debowska M, Dabrowski W, Wojcik-Zaluska A, Zaluska W, Waniewski J. Patient-specific pulse wave propagation model identifies cardiovascular risk characteristics in hemodialysis patients. PLoS Comput Biol 2018 Sep 14;14(9):e1006417 [FREE Full text] [CrossRef] [Medline]
    8. Xia C, Li Y, Yan J, Wang Y, Yan H, Guo R, et al. A practical approach to wrist pulse segmentation and single-period average waveform estimation. : IEEE; 2008 May 30 Presented at: 2008 International Conference on BioMedical Engineering and Informatics; 2008; Sanya, China. [CrossRef]
    9. Thakker B, Vyas AL. Outlier pulse detection and feature extraction for wrist pulse analysis. International Journal of Biomedical and Biological Engineering 2009 Jan 01;3(7):127-130 [FREE Full text]
    10. Wang D, Lu G. Period Segmentation for Wrist Pulse Signal Based on Adaptive Cascade Thresholding and Machine Learning. : IEEE; 2014 Presented at: 2014 International Conference on Medical Biometrics; 2014 May 30; Shenzhen, China. [CrossRef]
    11. Chen C. Research on detection method of abnormal pulse signal. Article in Chinese. Harbin, China: Harbin Institute of Technology; 2016.   URL: https://kns.cnki.net/KCMS/detail/detail.aspx?dbcode=CMFD&dbname=CMFD201801&filename=1017738492.nh [accessed 2020-02-05]
    12. Guyon I, Weston J, Barnhill S, Vapnik V. Gene selection for cancer classification using support vector machines. Machine Learning 2002;46:389-422. [CrossRef]
    13. Zhou Q, Zhou H, Zhou Q, Yang F, Luo L. Structure damage detection based on random forest recursive feature elimination. Mech Syst Signal Pr 2014 May;46(1):82-90. [CrossRef]
    14. Fuster V, Harrington RA, Narula J, Eapen ZJ. Hurst's The Heart. New York: McGraw-Hill Education; 2017.
    15. Fei Z, Zhang Z. Imaging and quantification of traditional pulse taking. Article in Chinese. Chinese Journal of Nature 1995;17(5):269-274.
    16. Adji A, O'Rourke MF. Determination of central aortic systolic and pulse pressure from the radial artery pressure waveform. Blood Press Monit 2004 Jun;9(3):115-121. [CrossRef] [Medline]
    17. O'Rourke MF, Pauca A, Jiang X. Pulse wave analysis. Br J Clin Pharmacol 2001 Jun;51(6):507-522 [FREE Full text] [CrossRef] [Medline]
    18. Bashar SK, Han D, Hajeb-Mohammadalipour S, Ding E, Whitcomb C, McManus DD, et al. Atrial Fibrillation Detection from Wrist Photoplethysmography Signals Using Smartwatches. Sci Rep 2019 Oct 21;9(1):15054 [FREE Full text] [CrossRef] [Medline]


    Abbreviations

    AF: atrial fibrillation
    AUC: area under the curve
    KNN: k-nearest neighbor
    ROC: receiver operating characteristic
    SVM-Linear: support vector machine-linear kernel
    SVM-Poly: support vector machine-polynomial kernel
    SVM-RBF: support vector machine-radial basis function kernel
    TCM: traditional Chinese medicine
